VectorDraw

VectorDraw Developer FrameWork

Add vector graphics to your application

VectorDraw Developer Framework (VDF) is an easy to program SDK component that every developer need to easily create and manage and print 2D and 3D drawings in his applications. Its objects expose methods and properties that are compatible with most common vector formats and other CAD objects. Supports over 10 vector formats and many raster formats and has the ability to export drawings to PDF. It is fully object oriented (OOP) .NET 2 ready and includes ActiveX component...

VectorDraw ana sayfası için www.vdraw.com adresini ziyaret ediniz.

promothumb

VectorCADEx Sample

C# project (source code) CAD Editor

VectorCADEx (vdfCAD) is a professional drawing CAD editor with source code available, written in C# 2005 that uses VDF libraries version 6009 and above. This makes VectorCADEx an excellent base platform that can be easy tailored by the developer to suit his needs. It can be localized in any language and can have add-ons made by the developer.

The source code is provided for free to all the VDF subscribers and can be used as a "base project" so the developer can add new features and utilities.


VectorDraw ana sayfası için www.vdraw.com adresini ziyaret ediniz.

vectordraw-sample

Web library

Use our knowledge on the web!

A vector graphics library that is designed to not only open CAD drawings but also display generic vector objects on any platform that supports the HTML 5 standard, such as Windows, Android, IOS and Linux. It can be executed in every major web browser (Chrome, Firefox, Safari, Opera, Dolphin, Boat and more) that support the use of canvas and Javascript, without any installation. This means that you can show your work from many formats like DXF, DWG, DGN, VDML and more, on almost every Computer, Tablet, Smartphone or Laptop out there. VectorDraw web library is written exclusively in Javascript and runs on the client side, also it contains an object model similar to that of DXF and .Net VectorDraw Framework components.


VectorDraw ana sayfası için www.vdraw.com adresini ziyaret ediniz.

vdraw-web-library

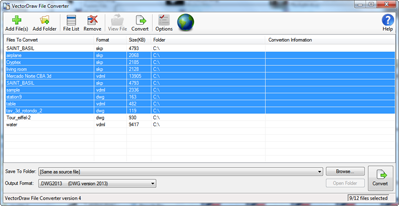

File Converter

Conversion of drawing vector files

VectorDraw File Converter is an end-user application utility that gives you the ability to convert the most commonly used drawing documents (.DWG, .DGN and .DXF files) to the new VectorDraw format standards (VDML, VDCL) and vice versa. The utility exports the above files to PDF, SVG and .DWF file formats. VectorDraw File Converter can also undertake multiple file conversions (e.g. *.dwg to *.vdf or *.dxf and vise versa).


VectorDraw ana sayfası için www.vdraw.com adresini ziyaret ediniz.

vdraw-converter
